DOGUSANQ FB870 TYPE I
DOGUSANQ FB870 TYPE I Block out is a premium 870 g/m² opaque PVC-coated architectural membrane from Doğusan, engineered with Low Wick technology and a high-performance 2PVDF-1PVDF glossy lacquer. Built on a high-tenacity 1100 dtex polyester base, it provides a consistent 3000 N breaking strength and 300 N tear resistance. It features an “excellent” Degree 0 microorganism resistance rating and comprehensive global flame retardancy certifications (B1, M2, B-s2,d0, NFPA 701). Operating securely between -40°C and +70°C, this material is the ultimate structural solution for permanent tensile architecture requiring complete light blockage.
DOGUSANQ FB870 TYPE I Block out: Premium Opaque Tensile Architecture Textile
DOGUSANQ FB870 TYPE I Block out, manufactured by Doğusan, is an advanced, high-performance PVC-coated fabric engineered specifically for the highly demanding Tensile Architecture sector where light blockage is required. With a robust total weight of 870 g/m² and a high-tenacity 1100 dtex polyester base, it provides an exceptional balance of structural strength and long-term protective qualities. The defining characteristics of this “TYPE I” architectural membrane are its opaque Block out nature, premium 2PVDF-1PVDF (SANQ PVDF) lacquering, Low Wick technology, strict fire retardancy, and absolute resistance to microorganisms.
Key Technical Features
Block Out Capability: Designed as an opaque membrane to completely block light transmission, making it ideal for climate-controlled or event environments.
Premium PVDF Surface: Treated with an advanced 2PVDF-1PVDF lacquering system (noted as SANQ PVDF) and a Glossy finish, offering superior environmental resistance, self-cleaning properties, and longevity.
Low Wick Technology: Features “low wick” yarns that prevent moisture and dirt from traveling through capillary action within the base fabric, ensuring long-term aesthetic and structural integrity.
Microorganism Resistance: Achieves a perfect “Degree 0, excellent” rating under the ISO 846-A standard, guaranteeing it will not degrade from fungal or bacterial growth.
Comprehensive Fire Safety: Meets stringent global fire safety standards, including B-s2,d0 (EN 13501-1, listed as B-52,d0), M2 (92-507), B1 (DIN 4102-1, listed as 81), and NFPA 701.
High Mechanical Strength: Delivers a reliable breaking strength of 3000 N/5cm and a tear strength of 300 N in both warp and weft directions, providing secure structural stability for tensioned applications.
Extreme Weather Resilience: Engineered to function flawlessly in temperatures ranging from -40°C to +70°C, while maintaining a robust adhesion force of 100 N/5cm.
Primary Applications

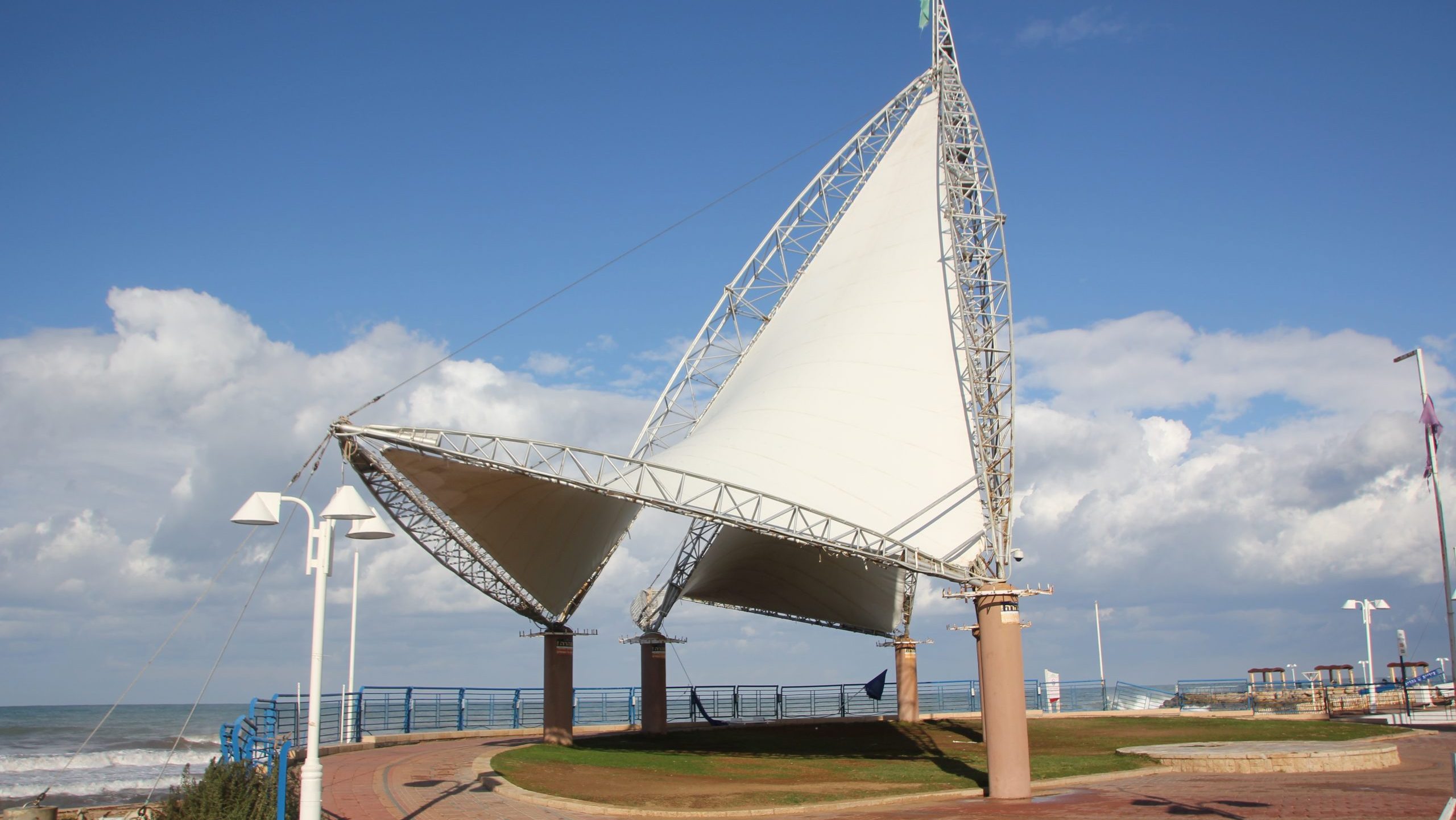

Tensile Architecture: Specifically optimized for permanent and semi-permanent architectural membranes, tensioned roofs, exhibition pavilions, and structural canopies where blocking sunlight and controlling temperature are essential.
Product Specifications Summary
| Property | Specification |
| Product Name | DOGUSANQ FB870 TYPE I Block out |
| Total Weight | 870 g/m² |
| Base Fabric | 100% PES / 1100 dtex |
| Finish | 2PVDF-1PVDF (SANQ) / Glossy |
| Special Features | Block Out / Low Wick / Microorganism Resistant (Degree 0) / FR |
| Adhesion Force | 100 N/5cm |
| Temperature Range | -40°C to +70°C |
Technical Data Sheet | |||||
| DOGUSAN Q FB870 TYPE I Block out | |||||
| Fabric | DIN ISO 2060:1994 | %100 PES / 1100 dtex / | |||
| Total Weight | ISO 2286/2 :2016 | 870 g/m² | |||
| Coating | PVC | ||||
| Lacquering | 2PVDF-1PVDF | ||||
| Embossing | Glossy | ||||
| Comment | SANQ PVDF | ||||
| Comment | Low wick | ||||
| Breaking strength Warp | ISO 1421/1 : 2016 | 3000 N/5cm | |||
| Breaking strength Weft | ISO 1421/1 : 2016 | 3000 N/5cm | |||
| Tear strength Warp | DIN 53363 : 2003 | 300 N | |||
| Tear strength Weft | DIN 53363 : 2003 | 300 N | |||
| Adhesion | ISO 2411 : 2017 | 100 N/5cm | |||
| Temperature resistance | EN 1876/1 : 1998 | -40/+70°C | |||
| Light fastness (Except white and (half-)transparent) | ISO 105 B02 : 2014 | 7-8 | |||
| Fire behaviour_FR / Fire behaviour_DE / Reaction to fire_EU / | EN 13501-1 : 2018 NF P 92-507:2004 DIN 4102-1 : 1998 BS7837 1996 NFPA 701 | B-s2,d0 M2 B1 | |||
| Microorganism resistance | ISO 846-A | Degree 0, excellent | |||
| CONFORM | EN 12641/2 | ||||
| Application >> Tensile Architecture | |||||
Disclaimer : We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
Disclaimer
We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
