DOGUSANQ F1600 TYPE V
DOGUSANQ F1600 TYPE V is an ultimate-duty 1600 g/m² PVC-coated architectural membrane from Doğusan, engineered with Low Wick technology and a premium 2PVDF-1PVDF glossy lacquer. Built on an ultra-high-tenacity 2200 dtex polyester base, it delivers an extraordinary 10000 N breaking strength and 1900 N tear resistance. It features a “Degree 0” microorganism resistance rating and broad flame retardancy certifications (B1, M2, C-s3,d0, NFPA 701). Operating securely between -40°C and +70°C with a massive 150 N/5cm adhesion, this waterproof material is the peak solution for mega-scale tensile architecture.
DOGUSANQ F1600 TYPE V: Ultimate-Duty Tensile Architecture Textile
DOGUSANQ F1600 TYPE V, manufactured by Doğusan, is an ultimate-duty, highly advanced PVC-coated fabric engineered specifically for the most demanding Tensile Architecture sector. With an unprecedented total weight of 1600 g/m² and a maximum-tenacity 2200 dtex polyester base, it provides extraordinary structural strength and long-term protective qualities. The defining characteristics of this “TYPE V” architectural membrane are its premium 2PVDF-1PVDF (SANQ PVDF) lacquering, Low Wick technology, strict fire retardancy, and absolute resistance to microorganisms.
Key Technical Features
Premium PVDF Surface: Treated with an advanced 2PVDF-1PVDF lacquering system (noted as SANQ PVDF) and a Glossy finish, offering superior environmental resistance and longevity.
Low Wick Technology: Features “low wick” yarns that prevent moisture from traveling through capillary action within the base fabric, ensuring long-term aesthetic and structural integrity.
Microorganism Resistance: Achieves a perfect “Degree 0, excellent” rating under the ISO 846-A standard, guaranteeing it will not degrade from fungal or bacterial growth.
Comprehensive Fire Safety: Meets stringent global fire safety standards, including C-s3,d0 (EN 13501-1, listed as C-53,d0), M2 (92-507), B1 (DIN 4102-1, listed as 81), and NFPA 701.
Ultimate Mechanical Strength: Delivers a massive breaking strength of 10000 N/5cm in the warp direction and 9000 N/5cm in the weft direction.
Unmatched Tear Resistance: Features an exceptional tear strength of 1900 N for both warp and weft, safeguarding the material against extreme mechanical impacts and high-tension loads.
Extreme Weather Resilience: Engineered to function flawlessly in temperatures ranging from -40°C to +70°C, while maintaining an exceptionally robust adhesion force of 150 N/5cm.
Primary Applications

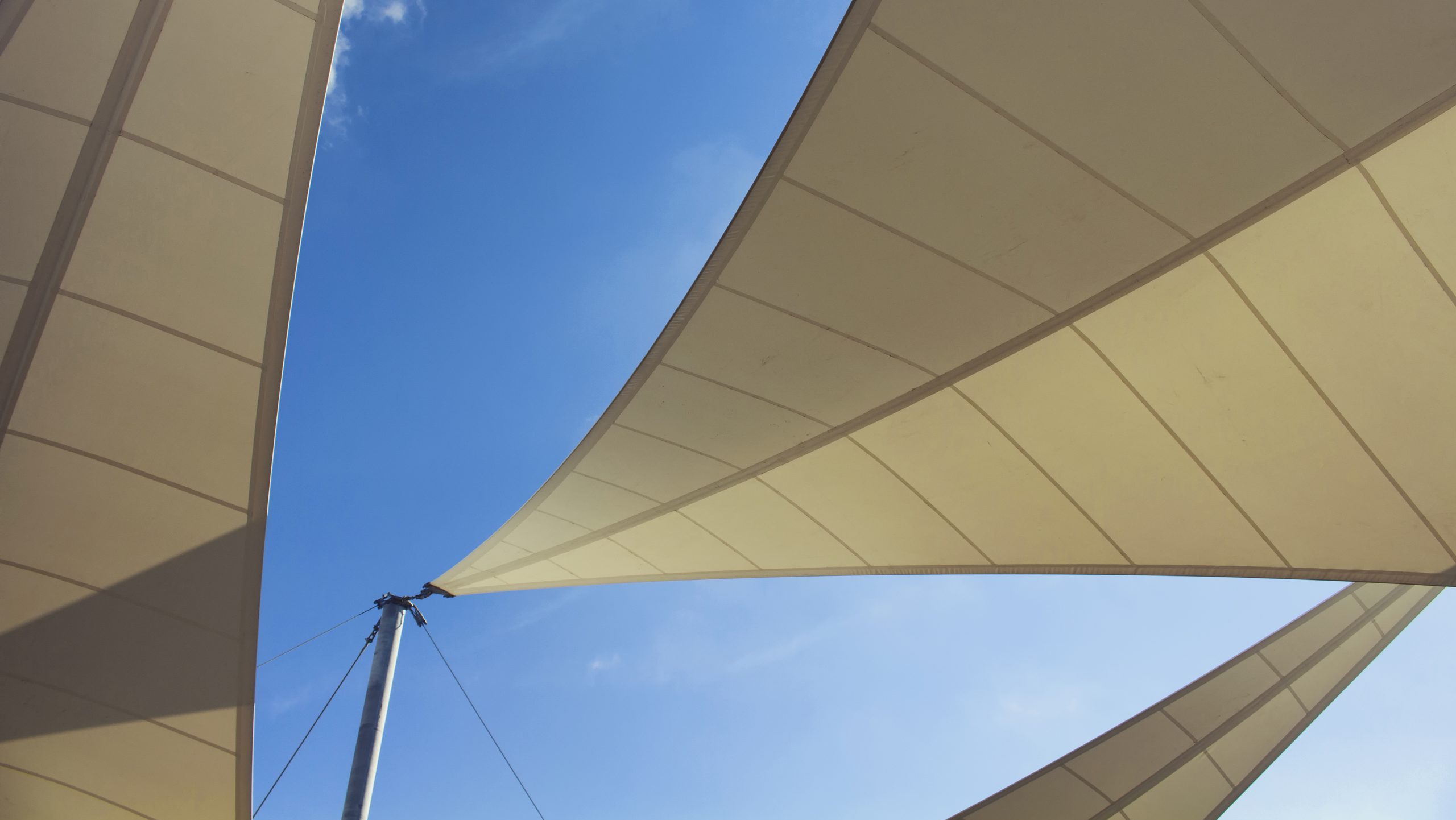

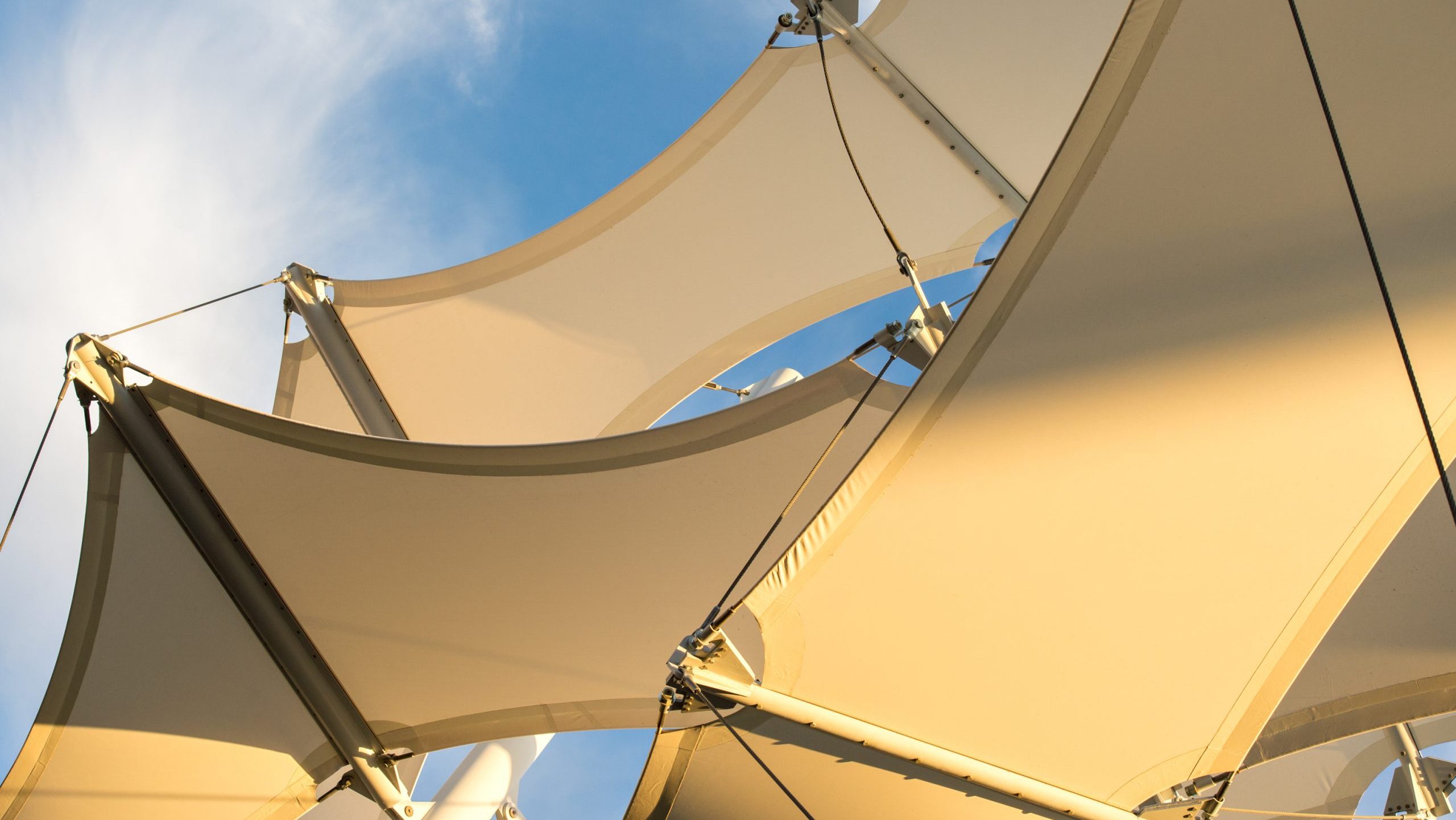

Tensile Architecture: Specifically optimized for the largest and most demanding permanent architectural membranes, mega-stadium roofs, and ultimate-duty structural canopies.
Product Specifications Summary
| Property | Specification |
| Product Name | DOGUSANQ F1600 TYPE V |
| Total Weight | 1600 g/m² |
| Base Fabric | 100% PES / 2200 dtex |
| Finish | 2PVDF-1PVDF (SANQ) / Glossy |
| Special Features | Low Wick / Microorganism Resistant (Degree 0) / FR |
| Adhesion Force | 150 N/5cm |
| Temperature Range | -40°C to +70°C |
Technical Data Sheet | |||||
| DOGUSAN Q F1600 TYPE V | |||||
| Fabric | DIN ISO 2060:1994 | %100 PES / 2200 dtex | |||
| Total Weight | ISO 2286/2 :2016 | 1600 g/m² | |||
| Coating | PVC | ||||
| Lacquering | 2PVDF-1PVDF | ||||
| Embossing | Glossy | ||||
| Comment | SANQ PVDF | ||||
| Comment | Low wick | ||||
| Breaking strength Warp | ISO 1421/1 : 2016 | 10000 N/5cm | |||
| Breaking strength Weft | ISO 1421/1 : 2016 | 9000 N/5cm | |||
| Tear strength Warp | DIN 53363 : 2003 | 1900 N | |||
| Tear strength Weft | DIN 53363 : 2003 | 1900 N | |||
| Adhesion | ISO 2411 : 2017 | 150 N/5cm | |||
| Temperature resistance | EN 1876/1 : 1998 | -40/+70°C | |||
| Light fastness (Except white and (half-)transparent) | ISO 105 B02 : 2014 | 7-8 | |||
| Fire behaviour_FR / Fire behaviour_DE / Reaction to fire_EU / | EN 13501-1 : 2018 NF P 92-507:2004 DIN 4102-1 : 1998 BS7837 1996 NFPA 701 | C-s3,d0 M2 B1 | |||
| Microorganism resistance | ISO 846-A | Degree 0, excellent | |||
| CONFORM | EN 12641/2 | ||||
| Application >> Tensile Architecture | |||||
Disclaimer : We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
Disclaimer
We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
