DOGUTRUCK D6710
DOGUTRUCK D6710 is a versatile 670 g/m² PVC-coated logistics textile from Doğusan. Built on a high-tenacity 1100 dtex polyester base, it provides a consistent 2500 N breaking strength and 220 N tear resistance. Its 1A- glossy lacquer finish maximizes dirt resistance and aesthetic appeal for high-quality vehicle branding. With a reliable 70 N/5cm adhesion force and an operating temperature range of -40°C to +70°C, this waterproof material is a flexible, highly dependable solution perfectly optimized for truck side curtains and general transportation covers.
DOGUTRUCK D6710: Versatile and Reliable Logistics Textile
DOGUTRUCK D6710, manufactured by Doğusan Technical Textile, is a highly adaptable PVC-coated fabric engineered for the transportation and logistics sector. With a specific total weight of 670 g/m² and a high-tenacity 1100 dtex polyester base, it provides an excellent compromise between lightweight flexibility and structural durability. Its glossy finish ensures a professional aesthetic while offering a dirt-repellent surface that is easy to maintain in demanding outdoor conditions.
Key Technical Features
-
Consistent Mechanical Strength: Delivers a reliable breaking strength of 2500 N/5cm in both warp and weft directions, providing secure structural integrity under tension.
-
Tear Resistance: Features a tear strength of 220 N for both warp and weft, safeguarding the material against mechanical impacts and punctures.
-
Surface Protection: Treated with a 1A- lacquering system and a glossy finish to enhance ease of cleaning. The fabric also maintains an adhesion force of 70 N/5cm.
-
Extreme Weather Performance: Engineered to function flawlessly in temperatures ranging from -40°C to +70°C, ensuring adaptability to diverse climates.
Primary Applications
-

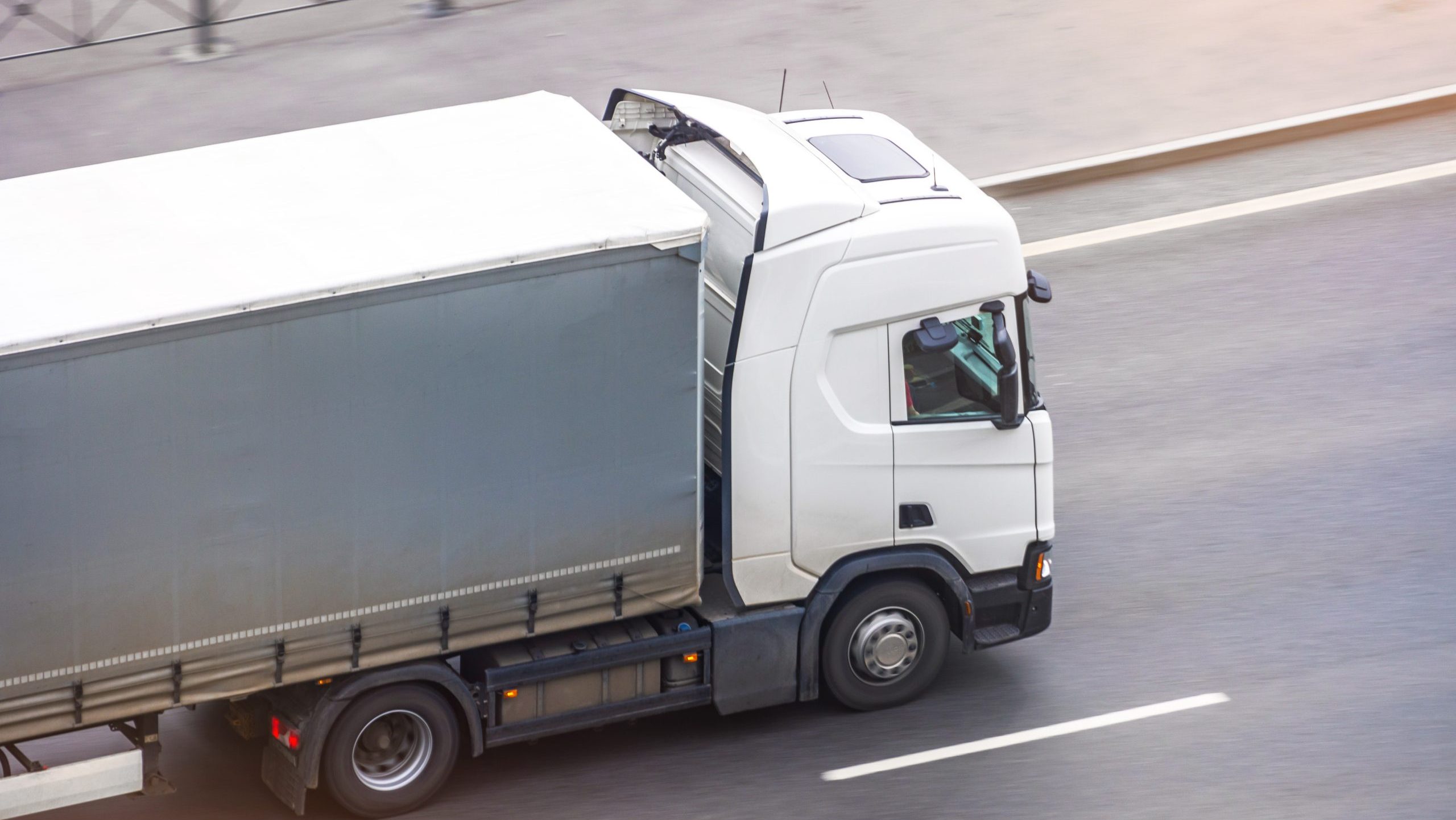

Logistics: Specifically optimized for Truck Side Curtains and flexible vehicle covers.
-
Transportation: Ideal for general-purpose transportation applications requiring a mid-weight, durable tarpaulin.
Product Specifications Summary
| Property | Specification |
| Product Name | DOGUTRUCK D6710 |
| Total Weight | 670 g/m² |
| Base Fabric | 100% PES / 1100 dtex |
| Finish | 1A- Lacquered / Glossy |
| Adhesion Force | 70 N/5cm |
| Temperature Range | -40°C to +70°C |
Technical Data Sheet
|
|||||
| DOGUTRUCK D6710 | |||||
| Fabric | DIN ISO 2060:1994 | %100 PES / 1100 dtex | |||
| Total Weight | ISO 2286/2 :2016 | 670 g/m² | |||
| Coating | PVC | ||||
| Lacquering | 1A- | ||||
| Embossing | Glossy | ||||
| Breaking strength Warp | ISO 1421/1 : 2016 | 2500 N/5cm | |||
| Breaking strength Weft | ISO 1421/1 : 2016 | 2500 N/5cm | |||
| Tear strength Warp | DIN 53363 : 2003 | 220 N | |||
| Tear strength Weft | DIN 53363 : 2003 | 220 N | |||
| Adhesion | ISO 2411 : 2017 | 70 N/5cm | |||
| Temperature resistance | EN 1876/1 : 1998 | -40/+70°C | |||
| Light fastness (Except white and (half-)transparent) | ISO 105 B02 : 2014 | 6-7 | |||
| Fire behaviour | ISO 3795 : 1989 | < 100 mm/min | |||
| CONFORM | EN 12641/2 | ||||
| Application >> Truck / Side Curtain / General Application | |||||
Disclaimer : We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
Disclaimer
We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
