DOGUTENT D73121 B1FR
DOGUTENT D73121 B1FR is a premium 730 g/m² PVC-coated tent textile from Doğusan, uniquely engineered with Anti-Bacterial, UV Treatment, and Flame Retardant (B1FR) properties. Built on a high-tenacity 1100 dtex polyester base, it provides an exceptional 3000 N breaking strength and 300 N tear resistance for demanding structural integrity. Its specialized 2A-1A glossy lacquer finish provides excellent dirt resistance, while a robust 100 N/5cm adhesion force ensures long-lasting durability. Operating securely between -40°C and +70°C, this waterproof material is the premier, safe, and hygienic solution for heavy-duty event tents and architectural structures.
DOGUTENT D73121 B1FR: Premium Flame-Retardant Tent Textile
DOGUTENT D73121 B1FR, manufactured by Doğusan Technical Textile, is a highly specialized, heavy-duty PVC-coated fabric engineered specifically for the demanding tent, event, and architectural structure sectors. With a robust total weight of 730 g/m² and a high-tenacity 1100 dtex polyester base, it provides an exceptional balance of structural strength and protective qualities. The defining characteristics of this textile are its built-in Anti-Bacterial and UV Treatments, combined with strict B1FR flame retardancy, making it the ultimate safe and hygienic solution for public enclosures and long-term outdoor structures.
Key Technical Features
-
Advanced Structural Protection: Features explicit Anti-Bacterial and UV Treatment formulations, preventing degradation from sun exposure, mold, and mildew, which is critical for tents and outdoor canopies.
-
Fire Safety Compliance: Specifically treated for flame retardancy (indicated by the B1FR designation), ensuring compliance with strict safety regulations for public events and architectural structures.
-
High Mechanical Strength: Delivers a reliable breaking strength of 3000 N/5cm in both warp and weft directions, providing secure structural integrity under high tension and wind loads.
-
Elevated Tear Resistance: Features a strong tear strength of 300 N for both warp and weft, safeguarding the material against harsh mechanical impacts.
-
Premium Surface Coating: Treated with a specialized 2A-1A lacquering system and a Glossy finish to enhance ease of cleaning. The fabric also maintains a robust adhesion force of 100 N/5cm.
-
Extreme Weather Resilience: Engineered to function flawlessly in temperatures ranging from -40°C to +70°C and boasts an exceptional light fastness rating of 7-8 (ISO 105 B02).
Primary Applications
-

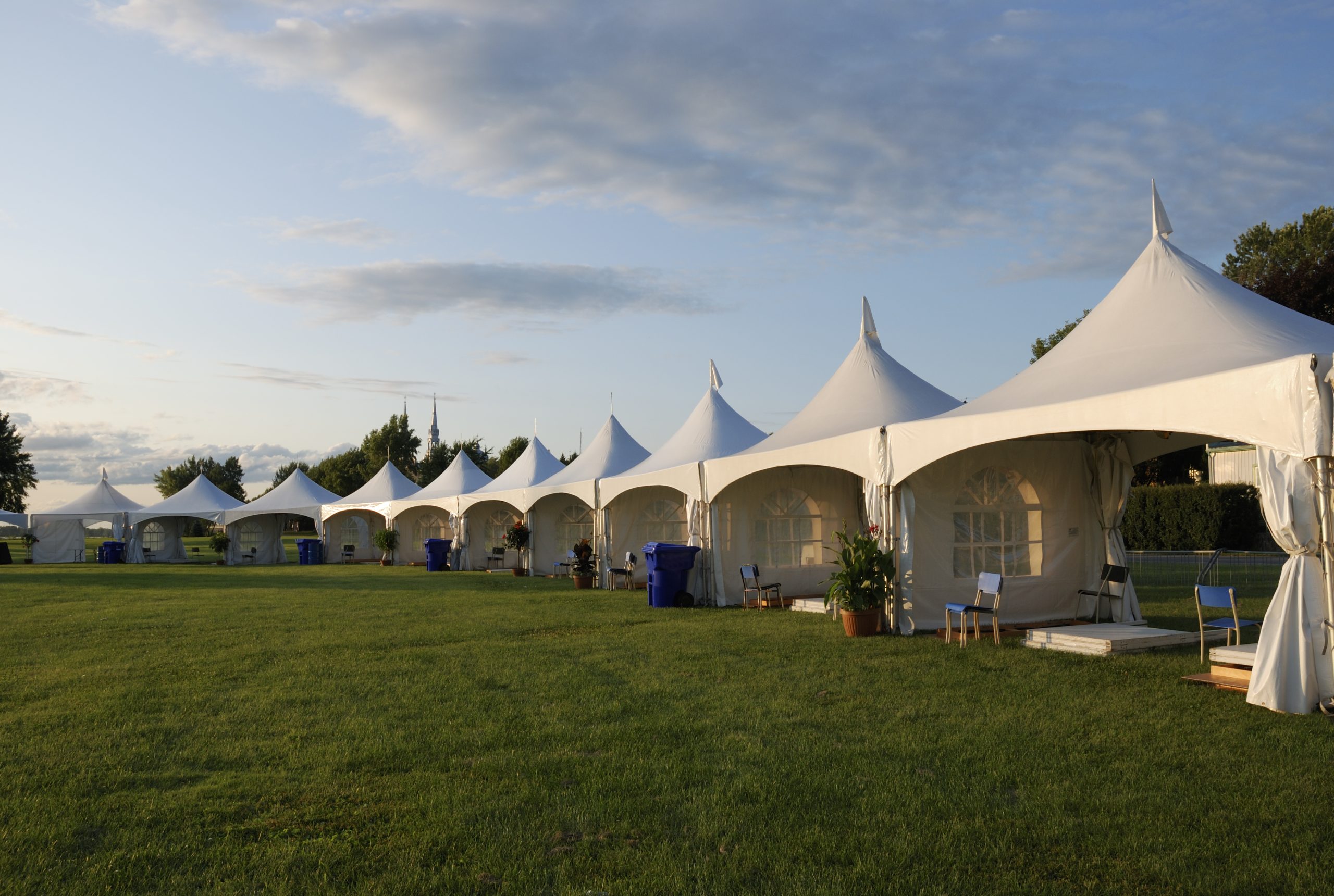

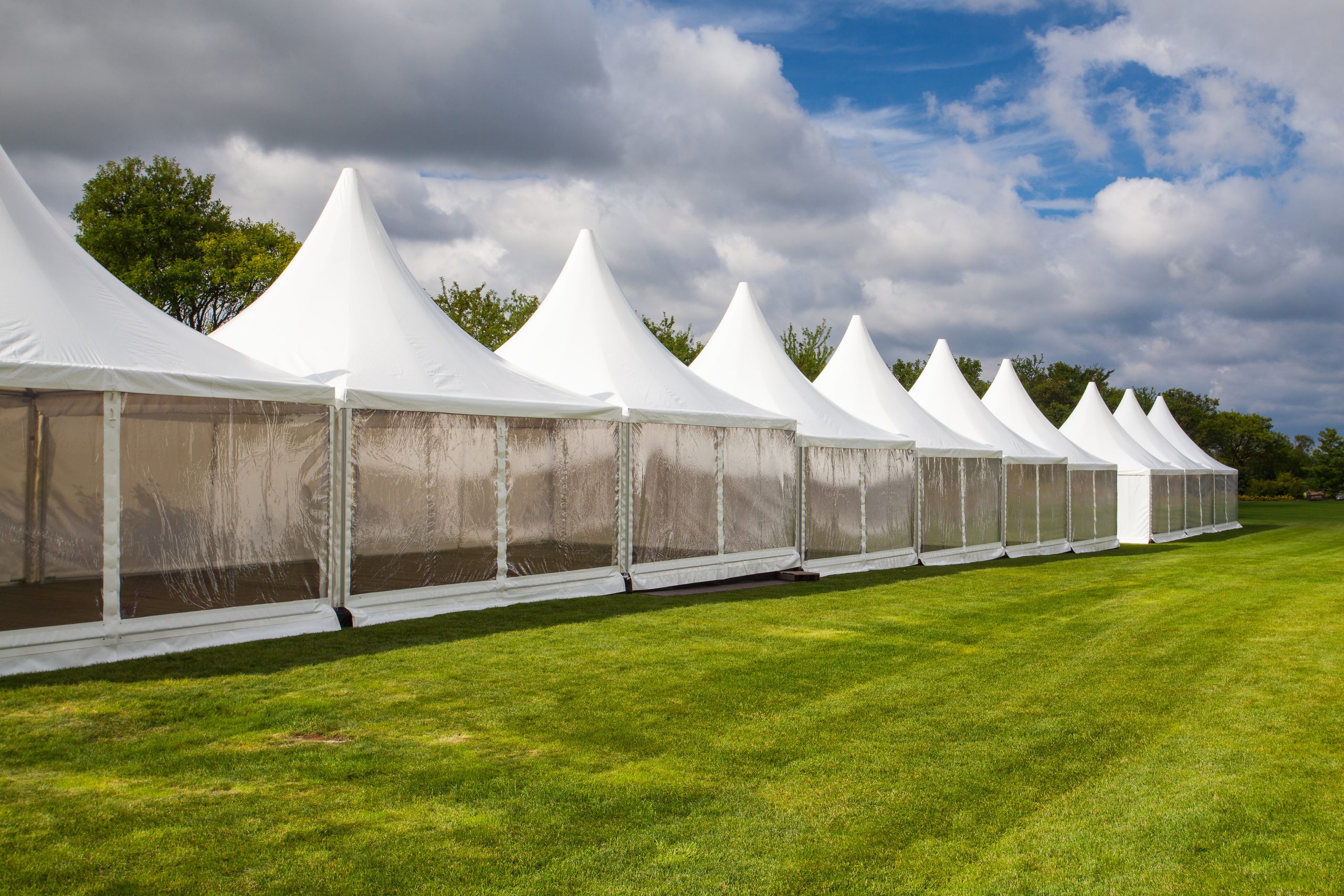

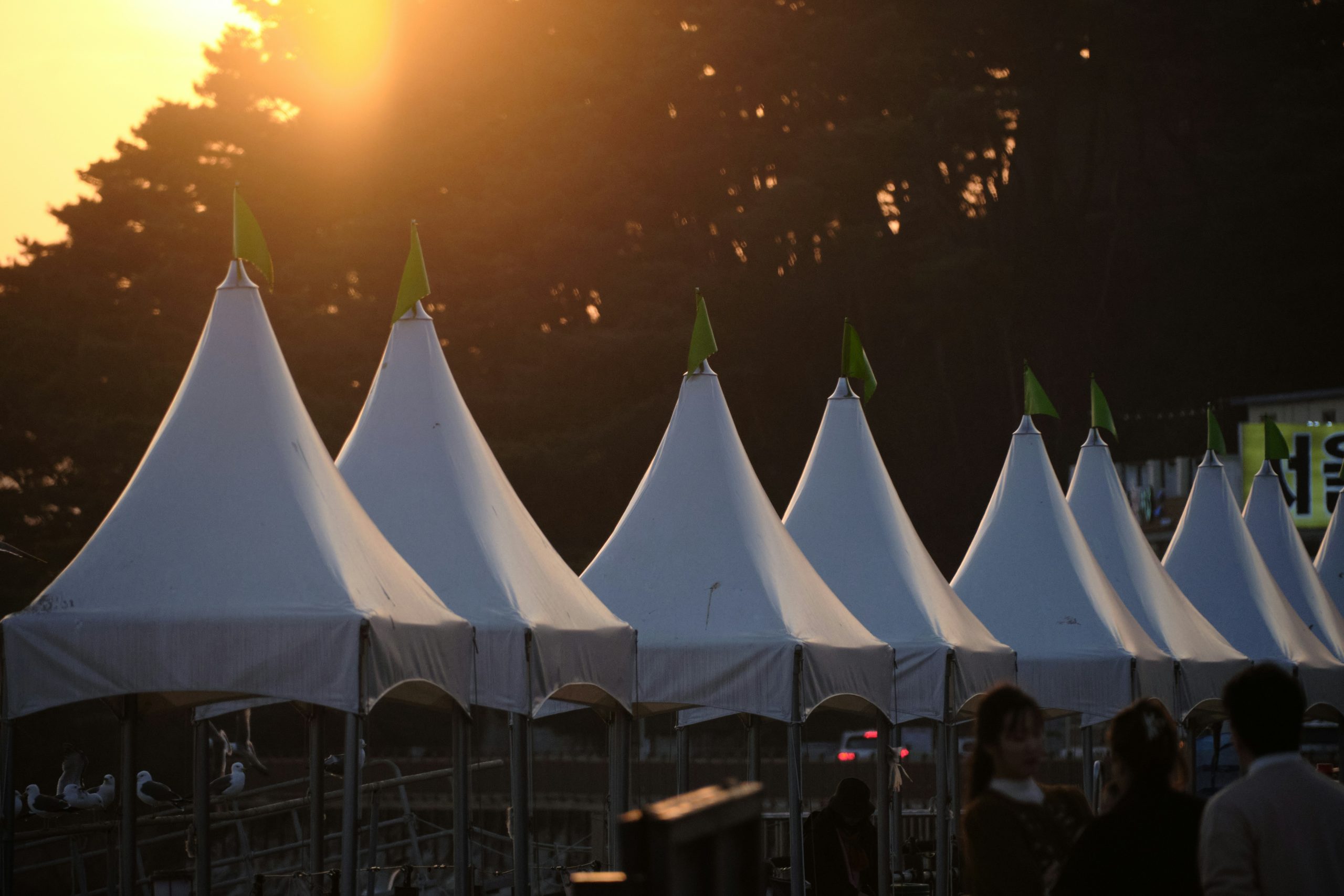

Tents and Event Structures: Specifically optimized for large-scale event tents, marquees, and public outdoor enclosures requiring strict fire safety and hygienic protection.
-
Architectural Canopies: Ideal for semi-permanent architectural covers and pergolas where long-term UV resistance, anti-bacterial properties, and high mechanical strength are necessary.
Product Specifications Summary
| Property | Specification |
| Product Name | DOGUTENT D73121 B1FR |
| Total Weight | 730 g/m² |
| Base Fabric | 100% PES / 1100 dtex |
| Finish | 2A-1A Lacquered / Glossy |
| Special Features | Anti-Bacterial / UV Treatment / FR |
| Adhesion Force | 100 N/5cm |
| Temperature Range | -40°C to +70°C |
Technical Data Sheet
|
|||||
| DOGUTENT D73121 B1FR | |||||
| Fabric / Tissu / Wessfsel / Gewebe | DIN ISO 2060:1994 | %100 PES / 1100 dtex | |||
| Total Weight / Poids total / Gewicht totaal / Totalgewicht | ISO 2286/2 :2016 | 730 g/m² | |||
| Coating | PVC | ||||
| Characteristics | Anti Bacterial / UV Treatment | ||||
| Lacquering | 2A-1A | ||||
| Embossing | Glossy | ||||
| Breaking strength Warp | ISO 1421/1 : 2016 | 3000 N/5cm | |||
| Breaking strength Weft | ISO 1421/1 : 2016 | 3000 N/5cm | |||
| Tear strength Warp | DIN 53363 : 2003 | 300 N | |||
| Tear strength Weft | DIN 53363 : 2003 | 300 N | |||
| Adhesion | ISO 2411 : 2017 | 100 N/5cm | |||
| Temperature resistance | EN 1876/1 : 1998 | -40/+70°C | |||
| Light fastness (Except white and (half-)transparent) | ISO 105 B02 : 2014 | 7-8 | |||
| Fire behaviour_FR /
Fire behaviour_DE / Reaction to fire_EU / |
NF P 92-507:2004 DIN 4102-1 : 1998 EN 13501-1 : 2018 | M2
B1 B-s2,d0 |
|||
| Application >> Tents & Halls | |||||
Disclaimer : We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
Disclaimer
We reserve modifications of the mentioned values for technical reasons.Values without tolerance statements are values with a tolerance of ± %5 . The information corresponds with our latest knowledge and is offered without liability.
